:. Introduction .:
Computers are becoming more and more affordable and with
the introduction of the 191N , I can say the same for high performance LCD's.

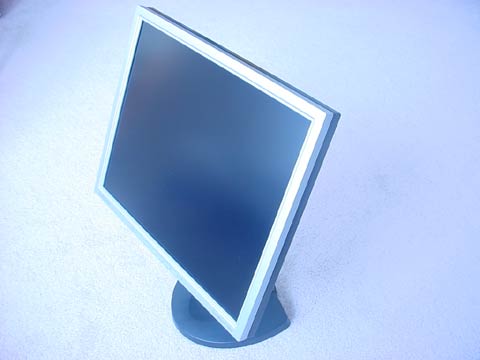

The 191N is a 19" LCD that won't make you broke. For what it lacks, which
isn't a whole lot, the price is surely worth the 19" size. The 191N looks
exactly like the 191T but at a fraction of the price since it lacks DVI input.
Samsung made the right decision to drop the DVI to lower the price because
from what we have seen in the past, it does not make much difference regarding
performance. :. Specifications .:
| General |
| Model Name |
SyncMaster
191N |
| LCD Panel |
|
Compatibility |
PC, Mac |
| Size |
19.0 inch diagonal |
| Display area |
376.32 (H) x 301.056 (V) |
| Pixel Pitch |
0.298 (H) x 0.294 (V) |
|
Contrast Ratio |
500:1 |
|
Brightness |
250 cm/m2 |
| Type |
a-si TFT active matrix |
| Viewing Angle |
170° H + 170° V |
| Synchronization |
| Horizontal |
30 ~ 81 kHz |
| Vertical |
56 ~ 85 Hz |
| Display Color |
| 16.7M (True) |
| Resolution |
| Optimum resolution |
1280 x 1024@60Hz |
| Maximum resolution |
1280 x 1024@76Hz |
| Input Signal, Terminated |
RGB Analog 0.7 Vpp positive at 75 ohms
Separate H/V sync, Composite, SOG
TTL level positive or negative |
| Maximum Pixel Clock |
| 135 MHz |
| Power Supply |
|
Internal: AC 90 ~ 264 VAC rms, 60/50 Hz ± 3Hz |

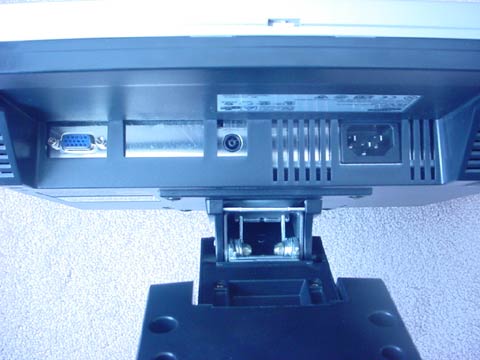

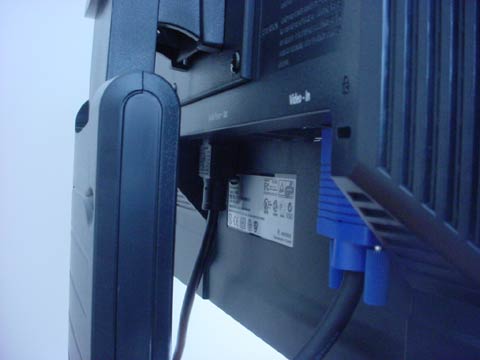

| Signal Cable |
| 15pin-to-15pin D-sub cable, detachable
RGB |
| Power Consumption |
| 42W (Maximum) |
| Dimensions (WxDxH) / Weight |
| 398.2 X 208.4 X 448.2 mm / 5.8kg (With Simple Stand) |

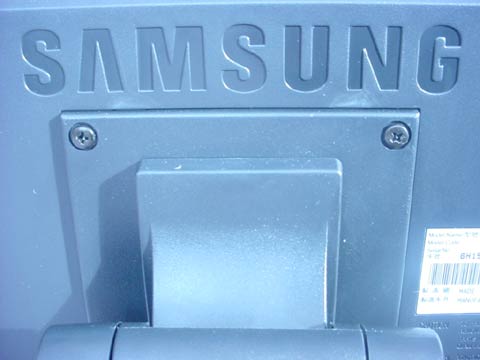

| VESA Mounting Interface |
| 100mm x 100mm (for use with
Arm Mounting hardware.) |
|
Service and Support |
|
3 Year Limited Warranty on Parts & Labor
and Backlight |
|
Portrait Display
Mode |
|
Portrait Display with Supplied Software |
| Display Mode | Horizontal Frequency
(kHz) | Vertical Frequency
(Hz) | Pixel Clock
(MHz) | Sync Polarity
(H/V) | | IBM, 640 x 350 | 31.469 | 70.086 | 25.175 | +/- | | IBM, 640 x 480 | 31.469 | 59.940 | 25.175 | -/- | | IBM, 720 x 400 | 31.469 | 70.087 | 28.322 | -/+ | | VESA, 640 x 480 | 37.500 | 75.000 | 31.500 | -/- | | VESA, 640 x 480 | 37.861 | 72.809 | 31.500 | -/- | | MAC., 640 x 480 | 35.000 | 66.667 | 30.240 | -/- | | MAC., 832 x 624 | 49.726 | 74.551 | 57.284 | -/- | | VESA, 800 x 600 | 35.156 | 56.250 | 36.000 | +,-/+,- | | VESA, 800 x 600 | 37.879 | 60.317 | 40.000 | +/+ | | VESA, 800 x 600 | 46.875 | 75.000 | 49.500 | +/+ | | VESA, 800 x 600 | 48.077 | 72.188 | 50.000 | +/+ | | VESA, 1024 x 768 | 48.363 | 60.004 | 65.000 | -/- | | VESA, 1024 x 768 | 56.476 | 70.069 | 75.000 | -/- | | VESA, 1024 x 768 | 60.023 | 75.029 | 78.750 | +/+ | | VESA, 1280 x 1024 | 63.981 | 60.020 | 108.00 | +/+ | | VESA, 1280 x 1024 | 79.976 | 75.025 | 135.00 | +/+ | | SUN, 1280 x 1024 | 81.129 | 76.106 | 135.00 | -/- |
:. What's inside the box .:
 | |
